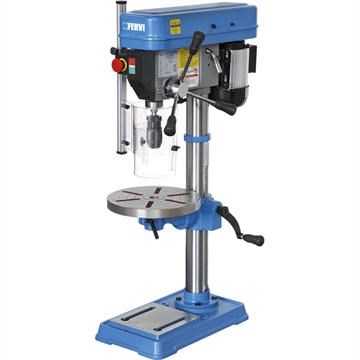

DRILL PRESS WITH DRIVE BELT

Max drilling capacity on cast iron with pre-drilling hole

Ø 20 mm

Max drilling capacity on steel with pre-drilling hole(s235jr)

Ø 16 mm

Continuous drilling capacity

Ø 12 mm

Self-centering chuck MT

2 - ø 16 mm B18

Spindle travel

80 mm

Height

990 mm

Table dimensions

ø 290 mm

Distance spindle axis - column surface

160 mm

Quill

ø 40 mm

Column

ø 72 mm

Distance between spindle nose and base

650 mm

Approx spindle speeds

(12) 280 ÷ 2380 rpm

Single-phase motor

230 V 50 Hz 0,65 kW

Max distance spindle nose - table

435 mm

EAN Code

8012667000073

Weight

51 kg
