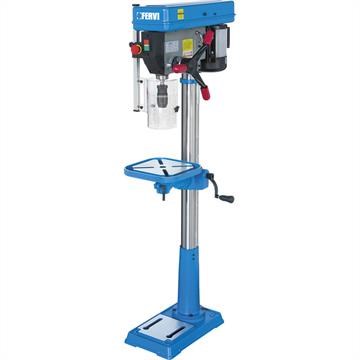

FLOOR DRILL PRESS WITH DRIVE BELT

Max drilling capacity on cast iron with pre-drilling hole

Ø 25 mm

Max drilling capacity on steel with pre-drilling hole(s235jr)

Ø 20 mm

Continuous drilling capacity

Ø 16 mm

Self-centering chuck MT

2 - ø 16 mm

Spindle travel

80 mm

Height

1630 mm

Table dimensions

290 x 290 mm

Distance spindle axis - column surface

178 mm

Distance between spindle nose and base

1170 mm

Quill

Ø 47 mm

Column

Ø 80 mm

Approx spindle speeds

(16) 220 ÷ 2840 rpm

Single-phase motor

230 V 50 Hz 0,75 kW

EAN Code

8012667179427

Weight

63 kg
